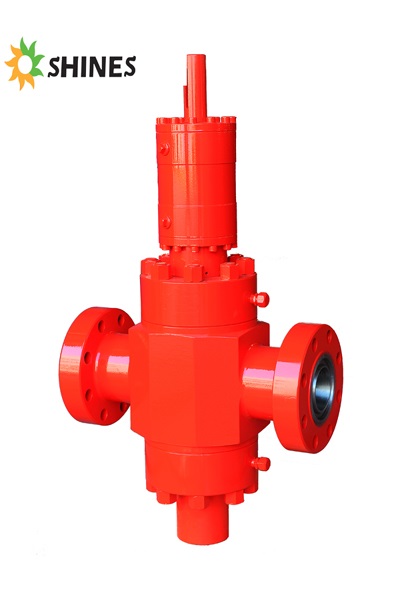

Hydraulic Gate Valves
Features
▪ Hydraulic slab gate valve is suitable for remote automatic control. Two ends outlets can be flange connection, thread connection or union connection.
▪ The valve body adopts integrated forging, high strength, neat appearance.
▪ The valve gate and seat adopts thermal spray welding which can make sure high hardness and good wear resistance.
▪ Hydraulic system standard adopts viton seals, can be fitted for high and low temperature etc extreme situation.
Technical Parameters
Working Pressure： 35~140MPa（5000psi~20000psi)
Nominal Diameter： 2-1/16"~4-1/16"
Temperature Level： -46℃~121℃（level L-U）
Material level：DD-EE
Manufacturing Standards：API 6A NACE MR0175
|
Order number |
Model |
Spec |
Pressure
(MPa) |
Overall size(mm) |
Ring gasket |
|
L |
A |
H |
|
PF5C42203T200 |
PFFY52-35 |
2-1/16" |
35 |
371 |
138.5 |
675 |
R24 |
|
PF5C42210T200 |
PFFY52-70 |
2-1/16" |
70 |
521 |
287.8 |
880.6 |
R24 |
|
PF6C42503T200 |
PFFY65-35 |
2-9/16" |
35 |
422 |
162 |
843 |
R27 |
|
PF5C42503T200 |
PFFY65-35 |
2-9/16" |
35 |
422 |
317.5 |
998 |
R27 |
|
PF5C42510T200 |
PFFY65-70 |
2-9/16" |
70 |
565 |
334 |
1001.7 |
R27 |
|
PF5C43210T200 |
PFFY78-70 |
3-1/16" |
70 |
619 |
381 |
1137.5 |
BX151 |
|
PF6C43215T200 |
PFFY78-105 |
3-1/16" |
105 |
598 |
186.8 |
942.8 |
BX151 |
|
PF5C43215T200 |
PFFY78-105 |
3-1/16" |
105 |
598 |
391 |
1152 |
BX151 |
|
